Hydraulic Oil Press Product Catalog

Complete range of hydraulic oil presses and oil processing equipment for your business

Shandong Haonuo Machinery Equipment Group Co., Ltd.

Hydraulic Oil Presses

Standard Hydraulic Oil Press

Standard Hydraulic Oil Press

HN325

325-ton hydraulic oil press for small workshops and starter oil mills. 20–100 kg per batch, 27 MPa cake pressure. Hot or cold pressing of peanut, sesame, rapeseed, tea seed, sunflower, or flaxseed. Compact footprint, factory-direct pricing, 1-year warranty.

Specifications:

  • Model (Single/Double): HN325 Simple / HN325 Double
  • Pressing Force: 325 Tonnes
  • Cake Surface Pressure: 27 MPa (Ø390 tabung press)
  • Hydraulic System Pressure: 60 MPa
Commercial Hydraulic Oil Press

Commercial Hydraulic Oil Press

HN365

365-ton hydraulic oil press for medium to large commercial operations. 30 MPa cake pressure, single or double tabung press. Hot or cold pressing of peanut, sesame, rapeseed, tea seed, walnut, or soybean. Vertical structure, manual or semi-automatic, factory-direct.

Specifications:

  • Model: HN365 Vertical Hydraulic Oil Press
  • Rated Pressing Force: 365 Tonnes
  • Cake Surface Pressure: 30 MPa
  • Frame: 3 cm high-strength steel plate
Cold Press Hydraulic Oil Press

Cold Press Hydraulic Oil Press

HN426

500-ton hydraulic press purpose-built for cold-pressing premium oils. 70 MPa system pressure, 42 MPa cake pressure. Low-heat extraction for coconut VCO, walnut, almond, or flaxseed. Hot pressing also supported. Single or double tabung press, factory-direct.

Specifications:

  • Model (Single/Double): HN426 Simple / HN426 Double
  • System Pressure: 70 MPa
  • Pressing Force: 500 Tonnes
  • Motor Power: 2.2 KW

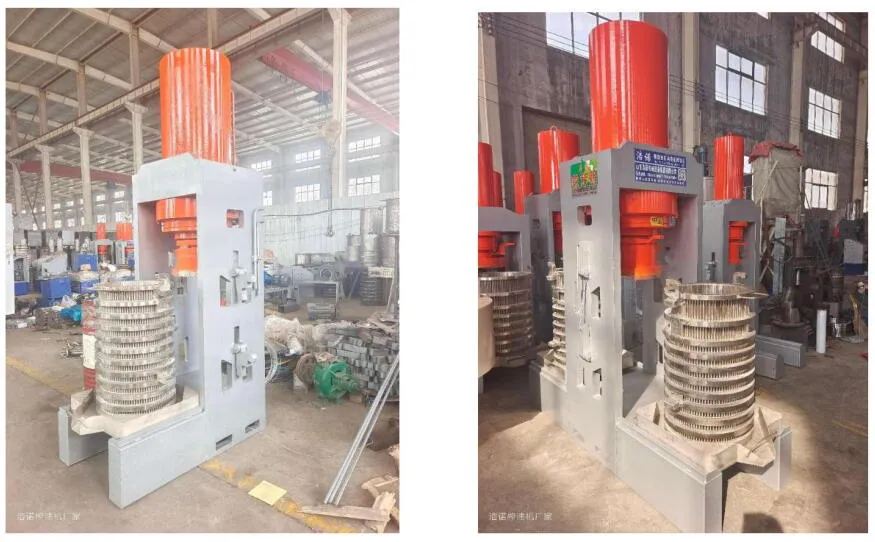

Ultra High Pressure Hydraulic Oil Press

Ultra High Pressure Hydraulic Oil Press

HN500

620-ton industrial hydraulic oil press for the hardest in-shell materials. 75 MPa system pressure, 52 MPa cake pressure. Presses in-shell walnut, apricot kernel, copra, or palm kernel. Single or double tabung press, heavy-duty steel frame, factory-direct.

Specifications:

  • Model (Single/Double): HN500 Simple / HN500 Double
  • System Pressure: 75 MPa
  • Pressing Force: 620 Tonnes
  • Motor Power: 2.2 KW

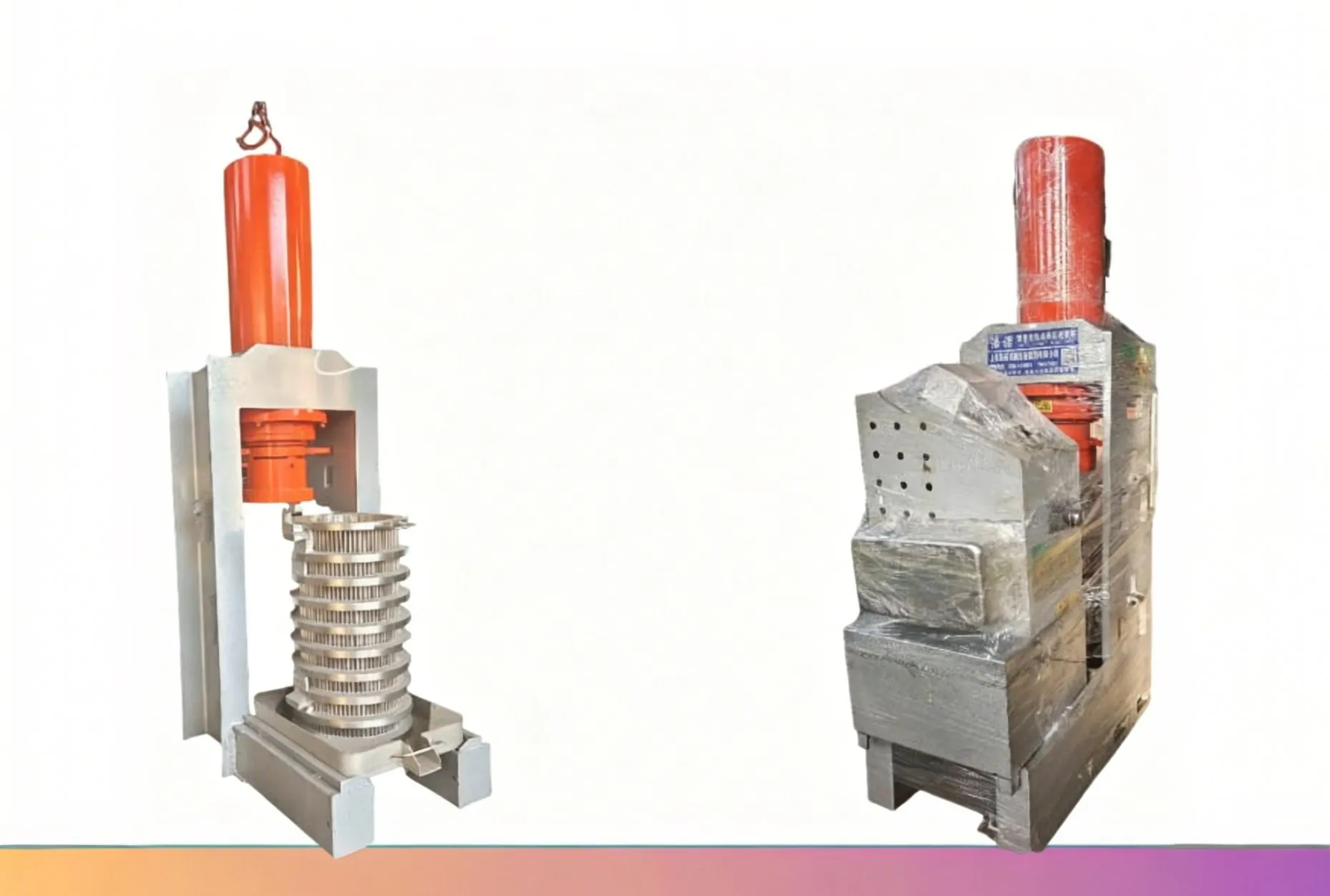

Sesame Oil Hydraulic Press

Sesame Oil Hydraulic Press

HN325/365 Sesame

Purpose-built hydraulic press for sesame oil. 42-54% max yield, 47–51 MPa cake pressure from 300mm narrow tabung press.

Specifications:

  • Model (325/365): HN325 Sesame / HN365 Sesame
  • Motor Power: 2.2 KW
  • Cylinder Outer Diameter (325/365): 325 / 360 mm
  • Cylinder Inner Diameter (325/365): 260 / 280 mm

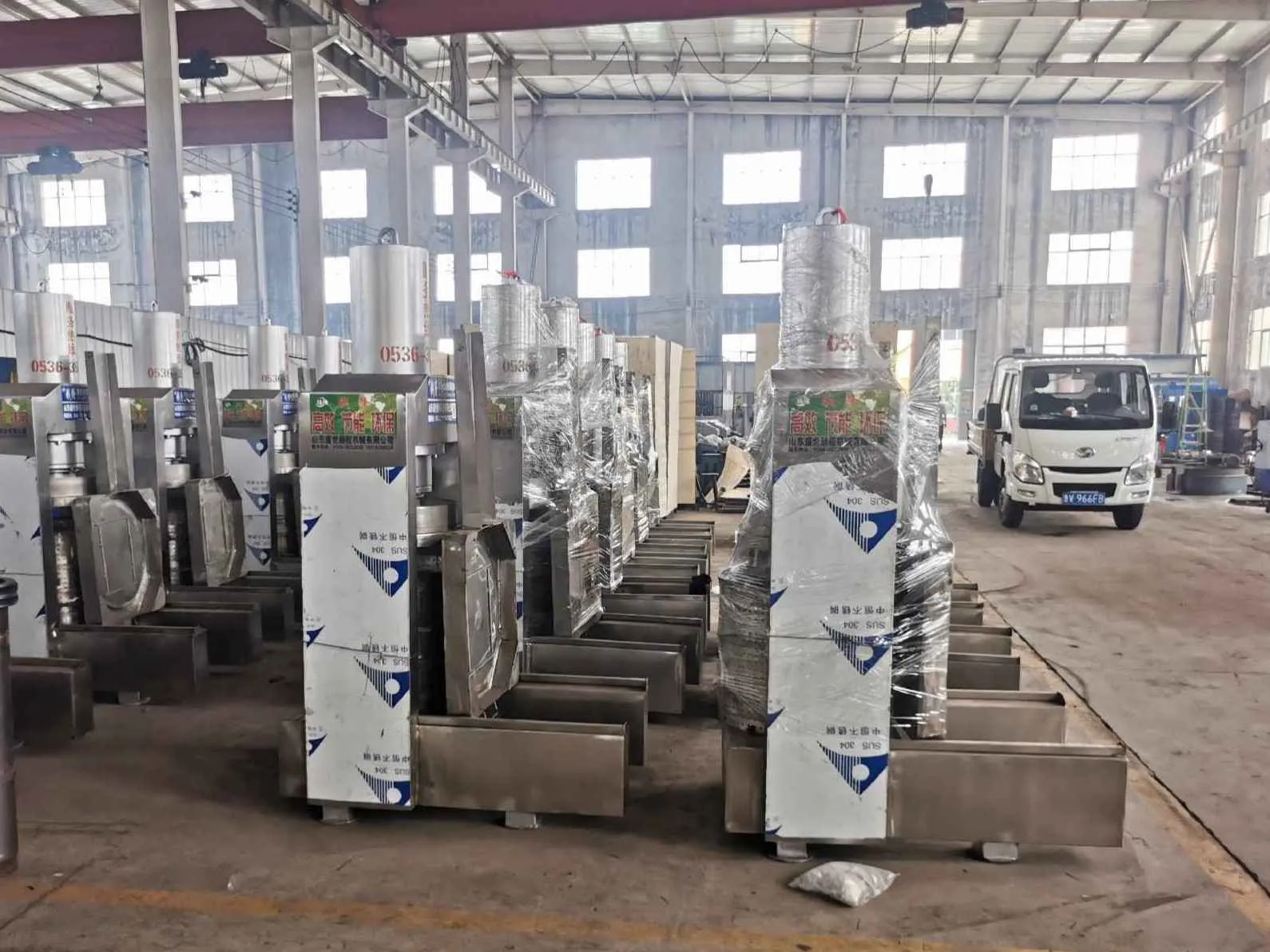

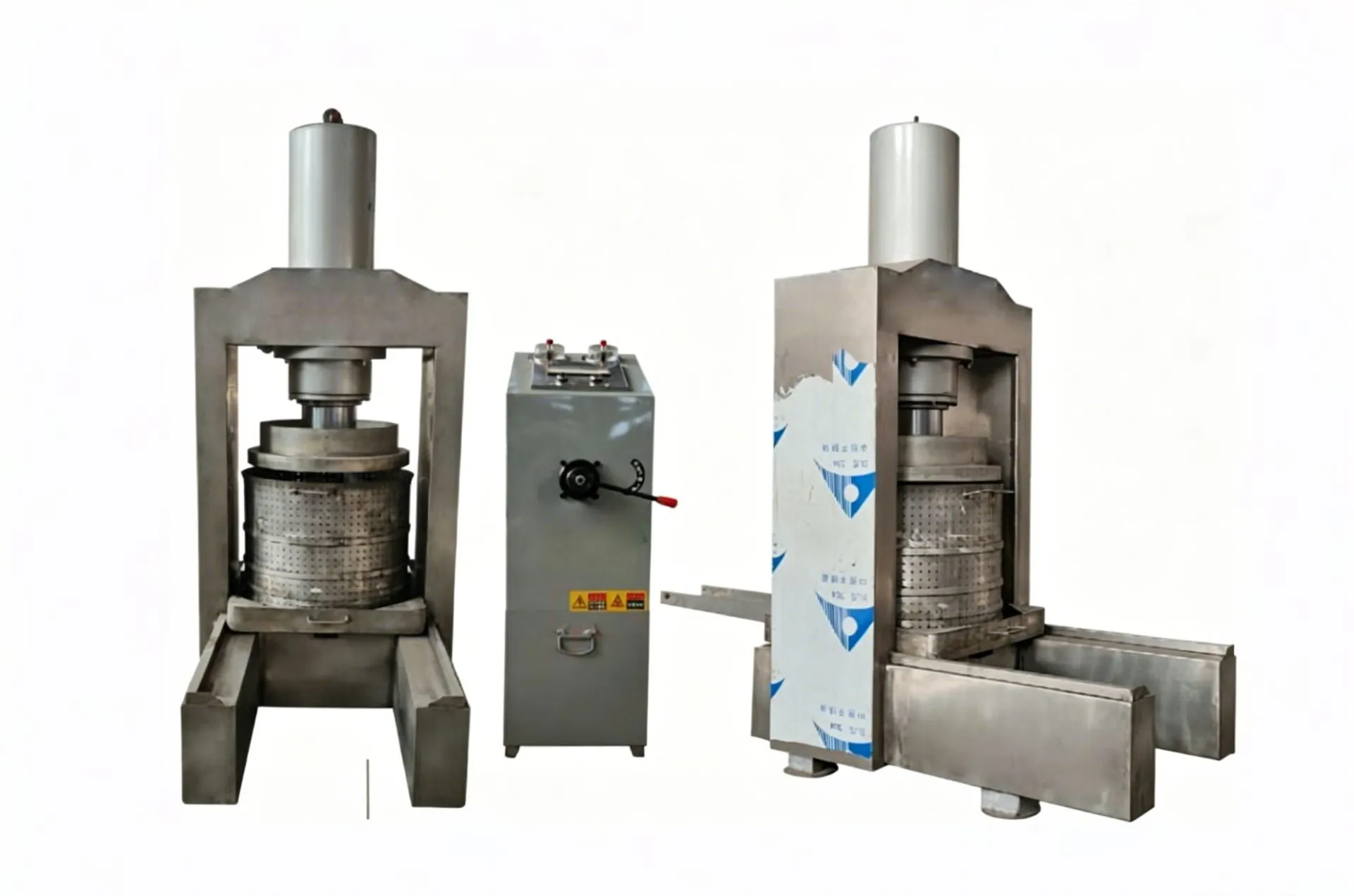

Coconut Milk Hydraulic Press

Coconut Milk Hydraulic Press

300 Type Coconut

300-ton hydraulic press with 600mm food-grade stainless steel tabung. Purpose-built for coconut milk, coconut cream, and VCO extraction. Custom configuration for coconut-only operations, 30–45 working days lead time, factory-direct.

Specifications:

  • Model: 300 Type Coconut
  • Motor Power: 2.2 KW
  • Cylinder Outer Diameter: 300 mm
  • Cylinder Inner Diameter: 240 mm

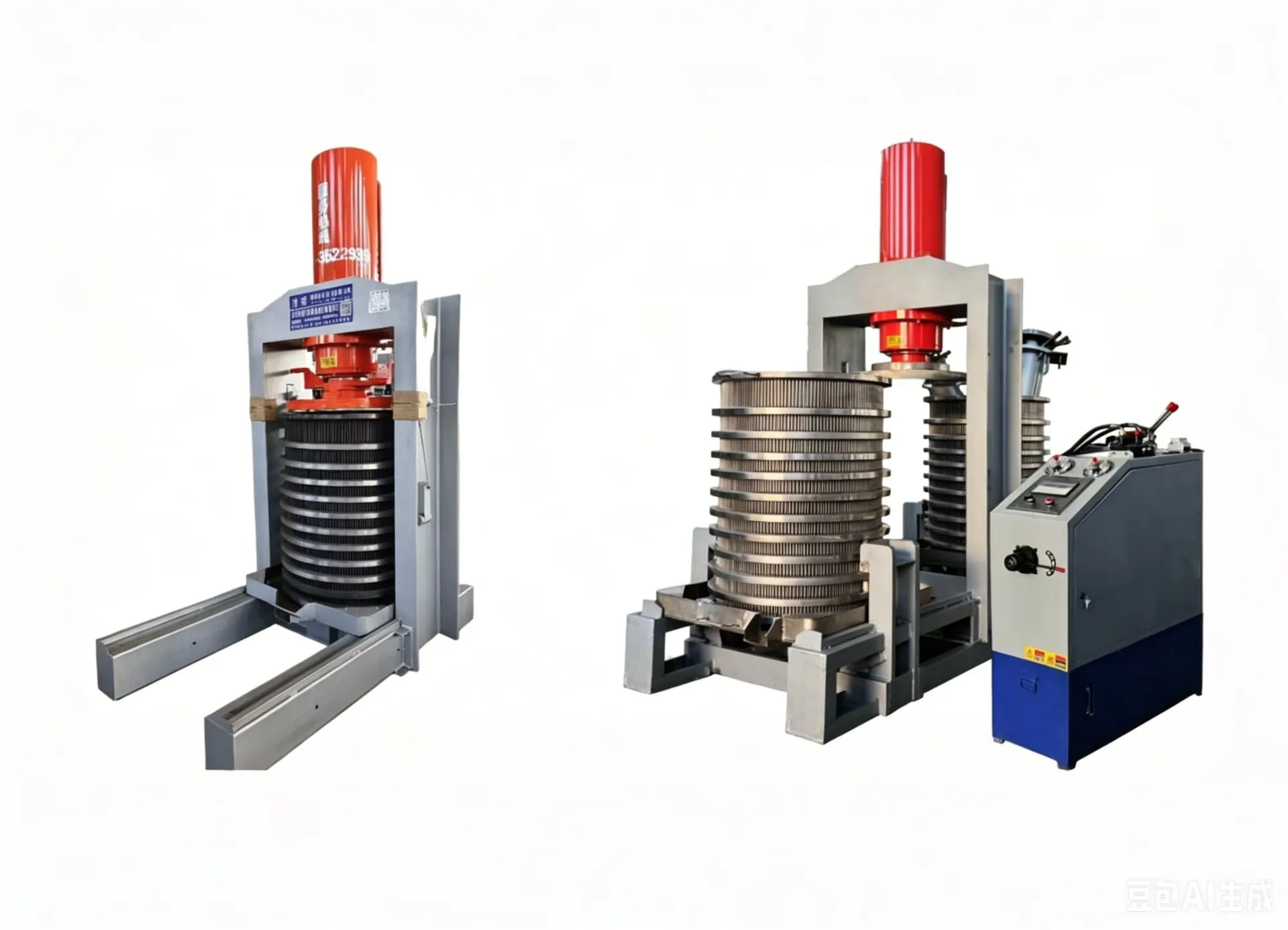

Sludge Dewatering Hydraulic Press

Sludge Dewatering Hydraulic Press

HN325 Large Tabung Press

325-ton hydraulic press with 630mm large tabung for sludge and residue dewatering. Handles oil sludge, animal/plant oil residue, textile sludge, and fruit/vegetable pulp dehydration. Custom configuration, 30–45 working days lead time.

Specifications:

  • Model (Single/Double): HN325LB Simple / HN325LB Double
  • Motor Power: 2.2 KW
  • Cylinder Outer Diameter: 325 mm
  • Cylinder Stroke: 850 mm

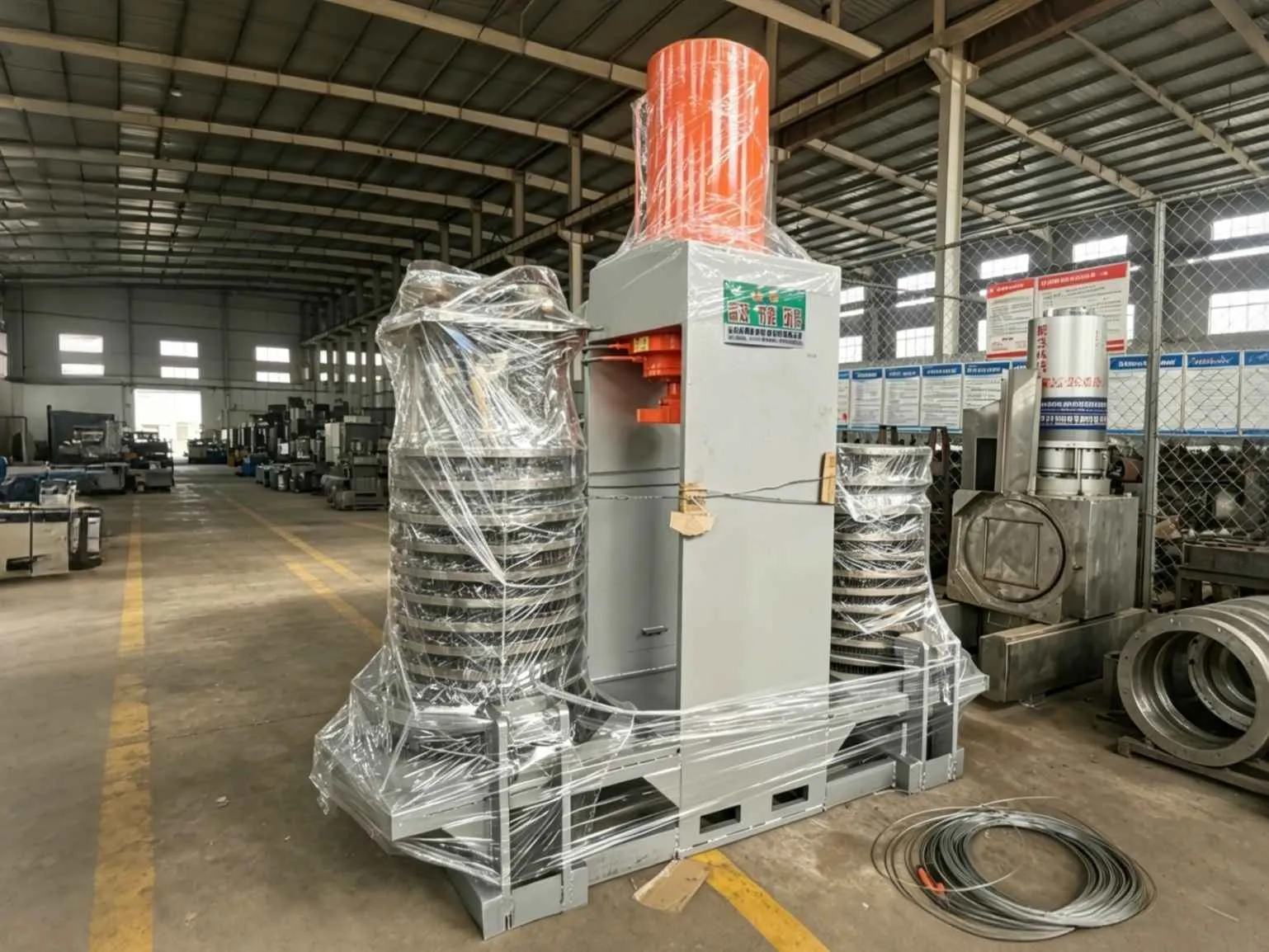

Ultra High Pressure Cold Press

Ultra High Pressure Cold Press

HN480B

600-ton ultra-high-pressure cold press for hard-shell premium oils. 65 MPa system pressure, 48 MPa cake pressure. Custom-configured for cold-pressing walnut, almond, or copra without heat damage. Made to order, 30–45 working days lead time, factory-direct.

Specifications:

  • Model (Single/Double): HN480B Simple / HN480B Double
  • System Pressure: 65 MPa
  • Pressing Force: 600 Tonnes
  • Motor Power: 2.2 KW

Roasting & Steaming Equipment

Automatic Electromagnetic Drum Roaster

Automatic Electromagnetic Drum Roaster

100# / 130#

Rotating-drum electromagnetic roaster with independent temperature control — even, flameless roasting before hot pressing. Three sizes from 160 to 450 kg per batch.

Specifications:

  • Models: 100# / 130# / Thickened 130#
  • Capacity per Batch: 160–220 kg / 200–350 kg / 360–450 kg
  • Drum Size: 70×98 cm / 73×130 cm / 80×130 cm
  • Motor: 0.75 kW / 1.1 kW / 1.5 kW (three-phase 4-pole)

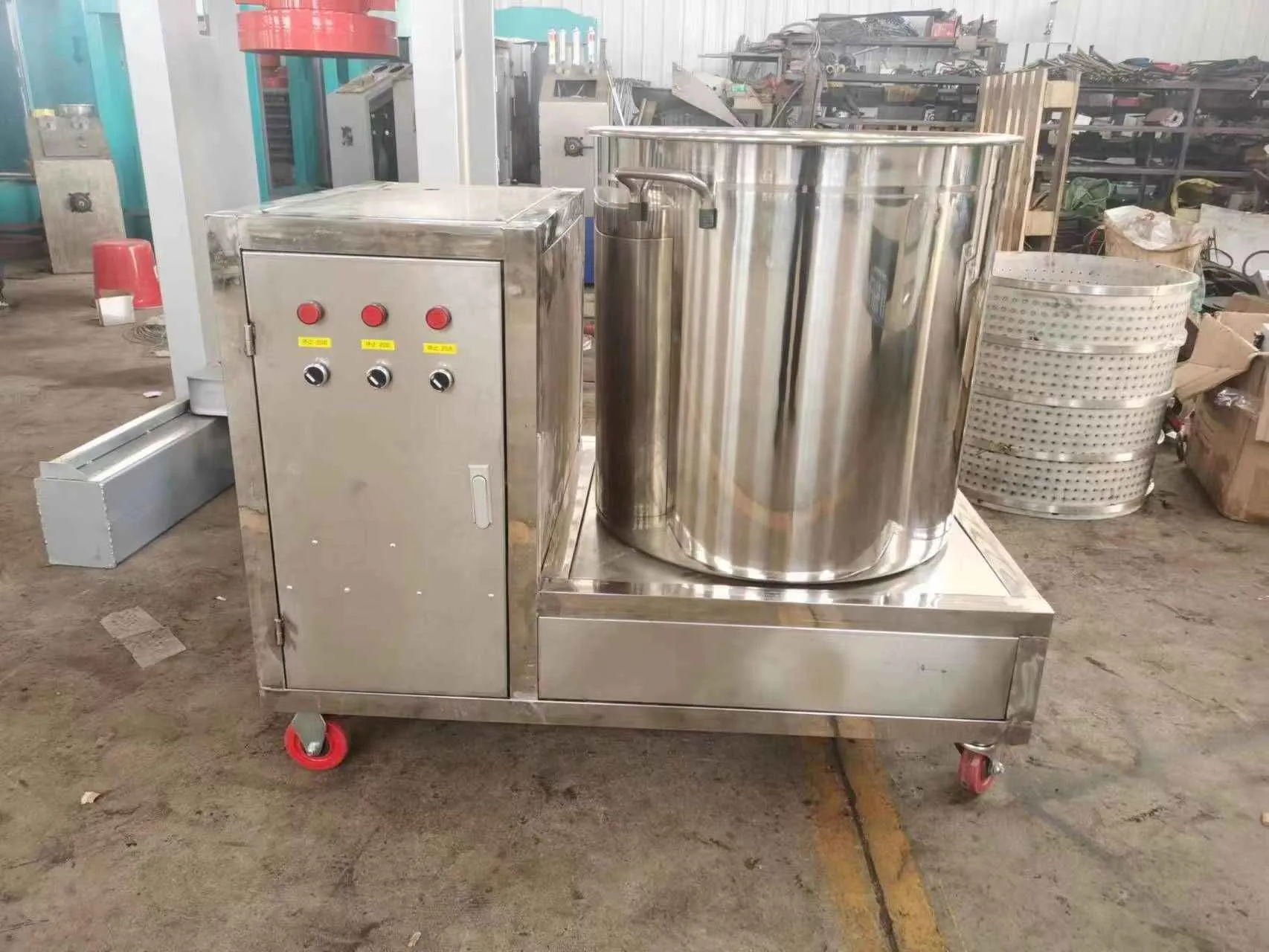

Electric Seed Steamer for Commercial Oil Mills

Electric Seed Steamer for Commercial Oil Mills

27KW Electric

Electric seed steamer for pre-press oil seed conditioning. Temperature-controlled steaming adjusts seed moisture and temperature for optimal oil yield.

Specifications:

  • Equipment Name: New Electric Seed Steamer
  • Water Filling Method: Manuel / Automatique (double mode)
  • Steaming Tabung Press Depth: 600 mm
  • Steaming Tabung Press Inner Diameter: 600 mm

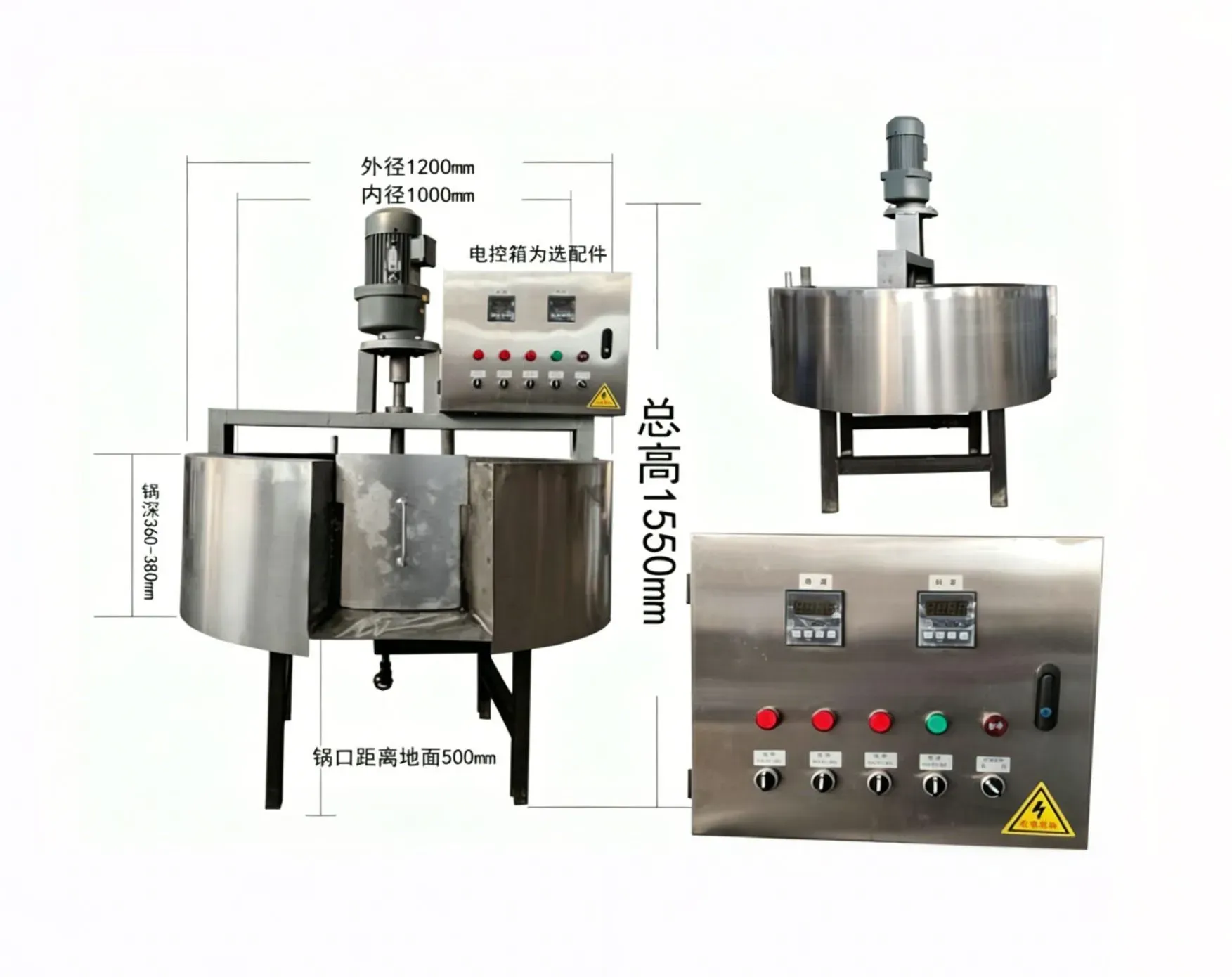

Thermal Oil Roasting Pan for Oilseeds

Thermal Oil Roasting Pan for Oilseeds

Thermal Oil Type

Thermal oil roasting pan for seed roasting and temperature adjustment. Even heating with thermal oil circulation for consistent roasting and improved oil flavor.

Specifications:

  • Model: 325 Large Tabung Press Single
  • Total Roaster Height: 1550 mm
  • Pot Outer Diameter: 1200 mm
  • Pot Inner Diameter: 1000 mm

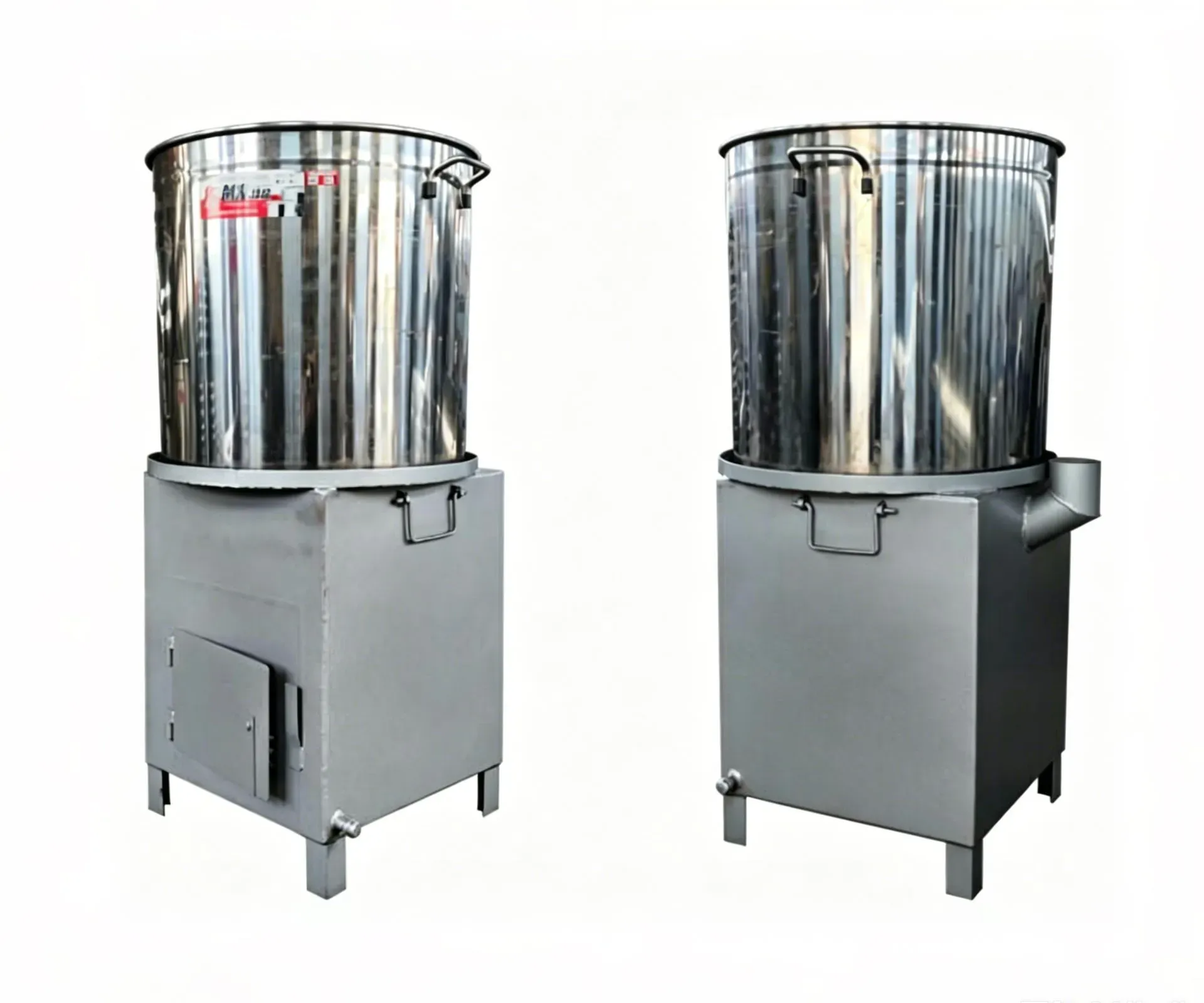

Wood-Fired Seed Steamer for Oil Mills

Wood-Fired Seed Steamer for Oil Mills

60 Type Wood-Fired

Wood-fired seed steamer for cost-effective oil seed conditioning. Economical steaming solution using wood or biomass fuel for areas with limited electricity.

Specifications:

  • Model: 60 Type Wood-Fired Steamer
  • Stove Body Material: Acier au carbone Q365B
  • Pot Body Material: Acier inoxydable 304 (finition miroir)
  • Stove Body Dimensions: 500×500×750 mm

Seed Processing Equipment

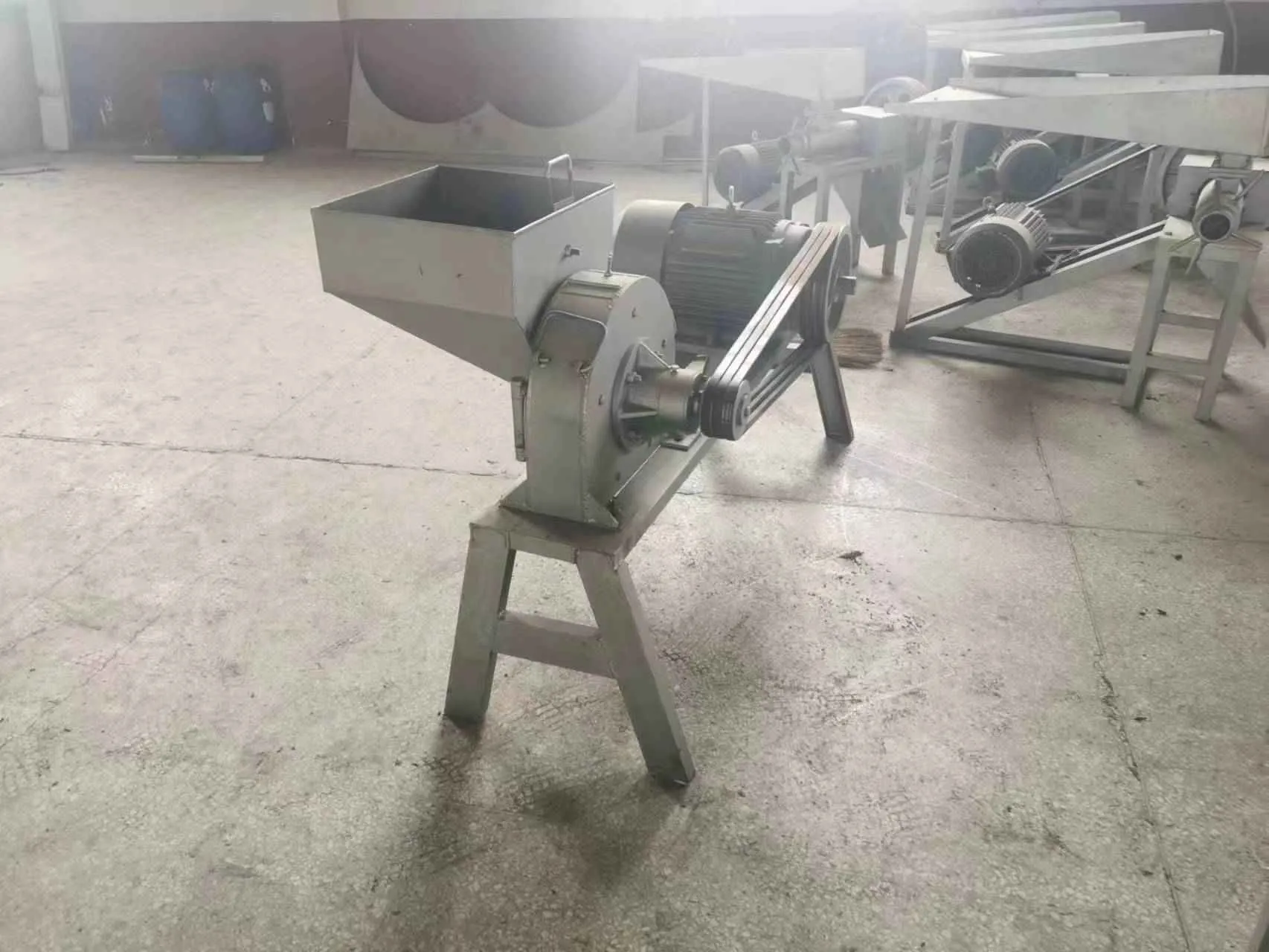

High Speed Seed Crusher for Oilseed Preparation

High Speed Seed Crusher for Oilseed Preparation

220 Type

High-speed seed crusher for pre-pressing oil seed preparation. Efficiently cracks and crushes palm kernel, copra, and hard-shelled seeds before hydraulic pressing.

Specifications:

  • Model: High Speed Seed Crusher Type 220
  • Voltage: 380V
  • Power: 11 KW
  • Rotation Speed: 1460 RPM

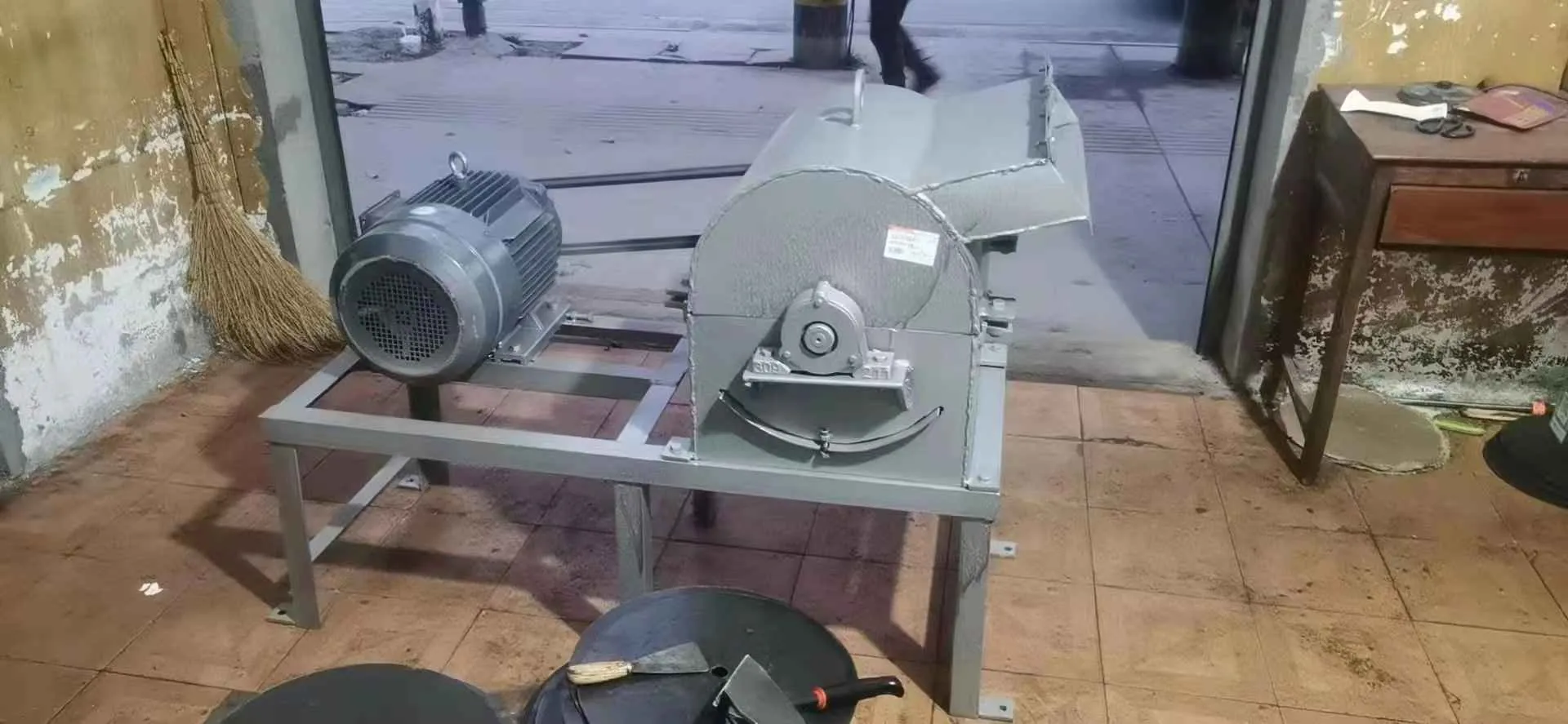

Industrial Oil Cake Crusher for Oil Mills

Industrial Oil Cake Crusher for Oil Mills

370 Type

Industrial-grade oil cake crusher for crushing pressed oil cakes into fine powder. Well-suited for recycling oil cake residue, producing animal feed, or further processing.

Specifications:

  • Model: Industrial Seed Crusher Type 370
  • Voltage: 380V
  • Power: 18.5 KW
  • Rotation Speed: 3260 RPM

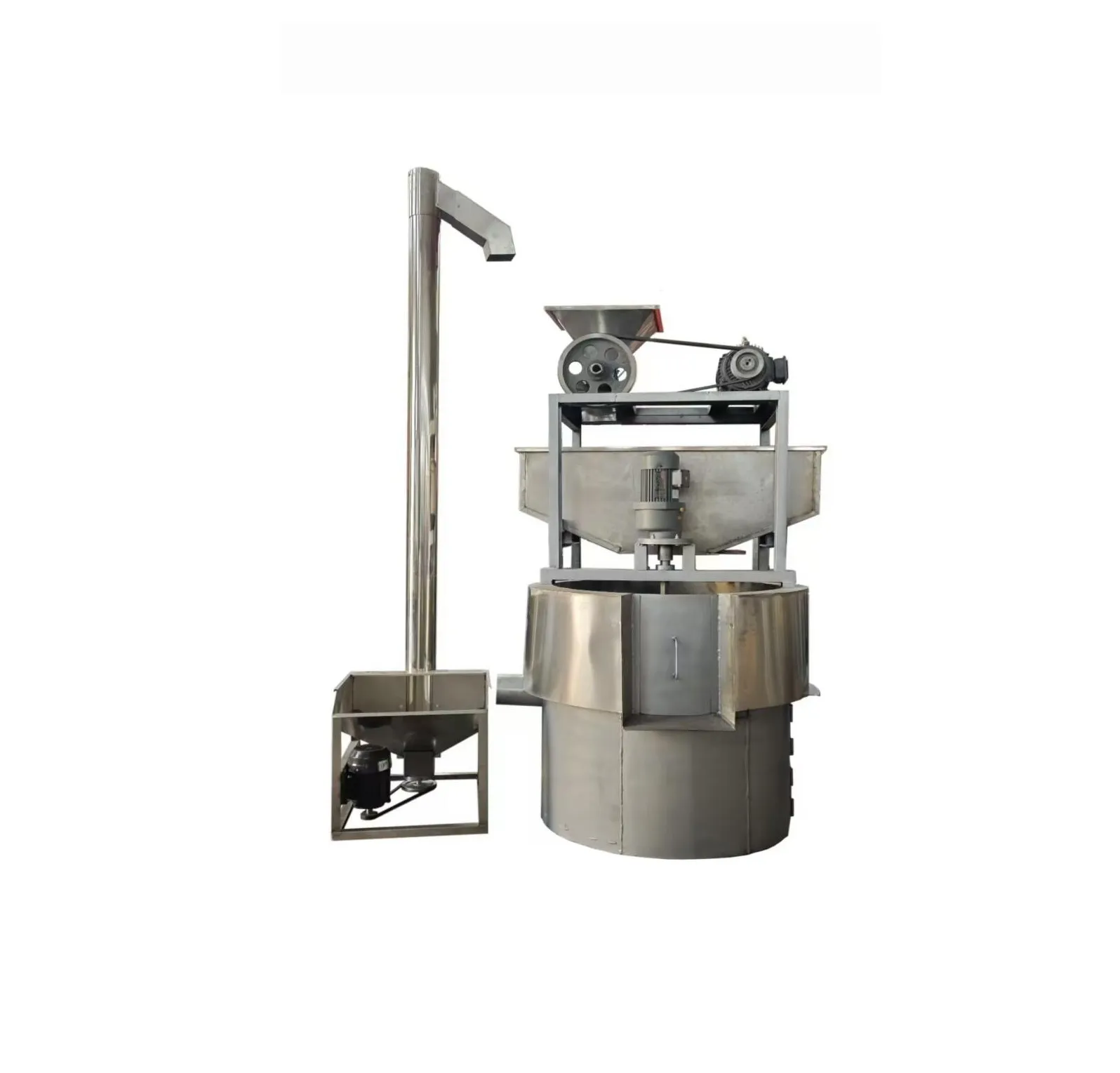

Integrated Feeder Crusher Roaster

Integrated Feeder Crusher Roaster

All-in-One

Integrated feeder, crusher, and roaster combo machine. All-in-one seed preparation system that feeds, crushes, and roasts oil seeds in a single operation.

Specifications:

  • Processing Capacity: 500-1000 kg/h (selon la configuration)
  • Integrated Functions: Alimentation automatique + Concassage + Torréfaction
  • MOQ: 1 Set
Oilseed Pre-Press for Oil Mill Pretreatment

Oilseed Pre-Press for Oil Mill Pretreatment

HN-CG60

Screw oilseed pre-press that crushes seeds into flakes and raises total plant oil yield by 3–5% before the main hydraulic press. 7.5 kW (500 kg/h) or 11 kW (750 kg/h), ready for mustard, rapeseed and groundnut lines.

Specifications:

  • Model: HN-CG60 Oilseed Expeller / Pre-Press (YZJ-7.5/11)
  • Motor Power: 7.5 kW standard / 11 kW optional
  • Voltage: 380V (customizable)
  • Motor Speed: 1460 r/min
Vertical Screw Conveyor Feeder

Vertical Screw Conveyor Feeder

HN-SC

2-metre vertical stainless steel screw feeder for automatic oilseed feeding into presses, roasters and filters. 1.1 kW geared drive, 600×600×600 mm bin, enclosed dust-free conveying.

Specifications:

  • Model: HN-SC Stainless Steel Vertical Screw Conveyor
  • Material: Stainless steel (screw, tube, bin, frame)
  • Drive Motor: 1.1 kW geared motor
  • Lift Height: 2 metres

Filtration & Refining Equipment

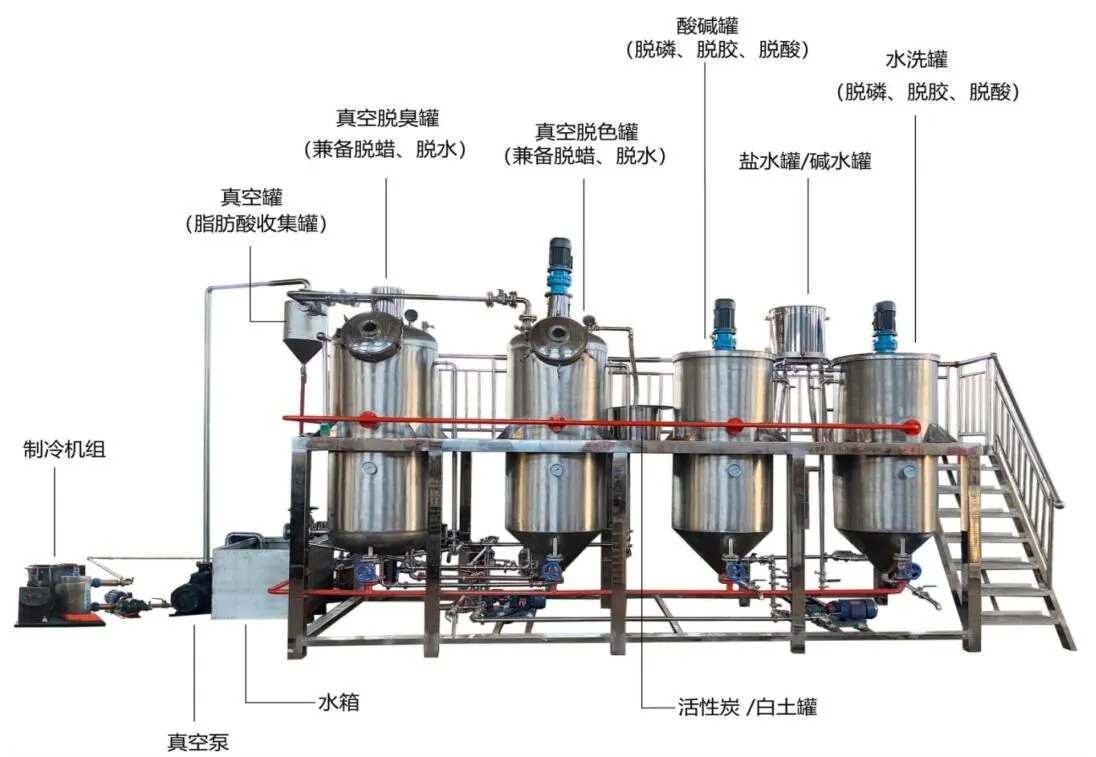

Edible Oil Refining System for Oil Mills

Edible Oil Refining System for Oil Mills

Custom (1-100 T/D)

Complete edible oil refining system with degumming, neutralization, bleaching, and deodorization. Batch or continuous processing for premium cooking oil production.

Specifications:

  • Capacity: 1-100 tons/day (fully customizable)
  • Process Flow: Huile brute → Dégommage → Neutralisation → Lavage → Séchage → Décoloration → Désodorisation → Huile RBD
  • Equipment Included: Cuve de neutralisation, Cuve de décoloration, Cuve de désodorisation, Four à huile thermique, Pompe à vide
  • Refining Methods: Mécanique, Chimique, Physico-chimique

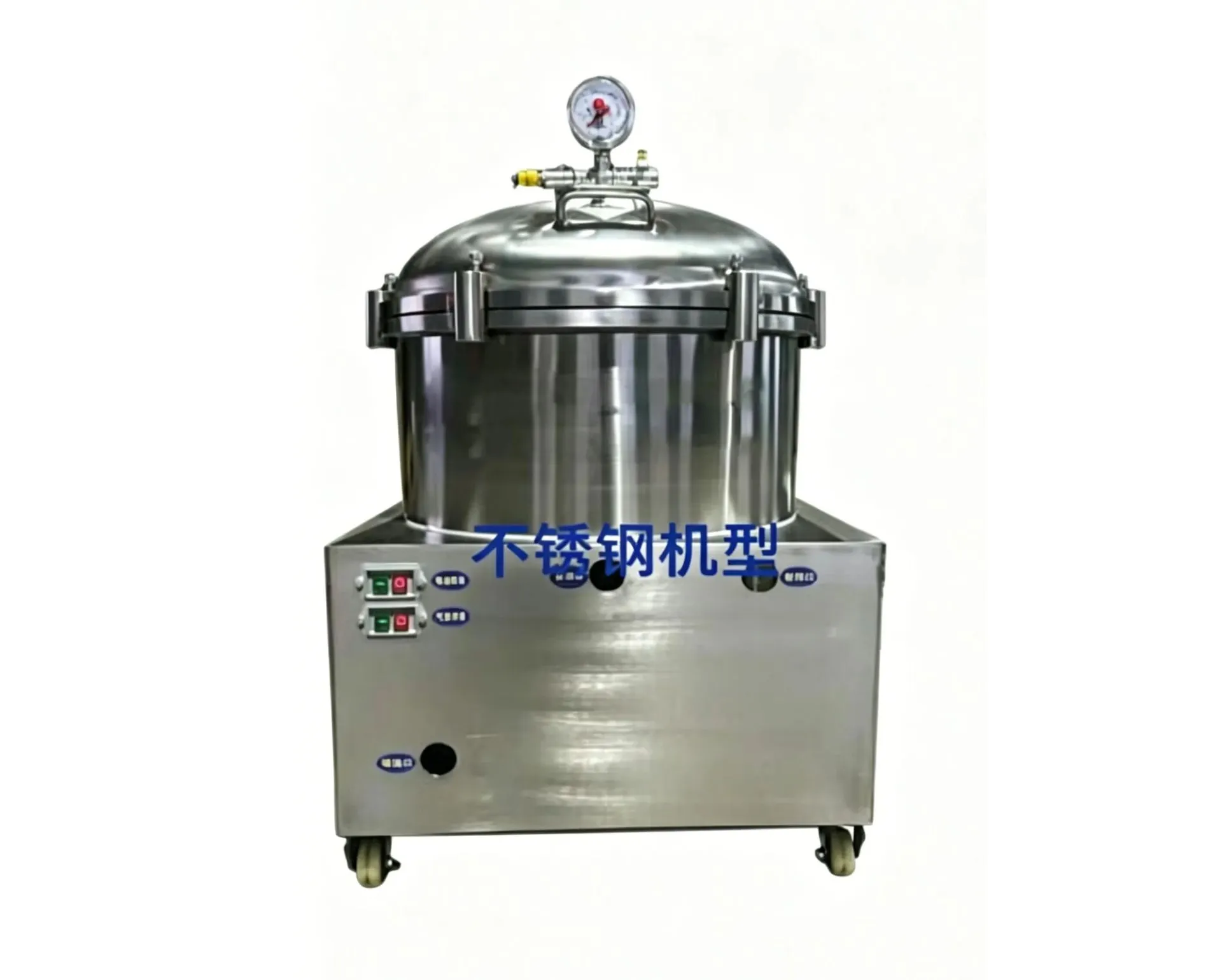

Pneumatic Oil Filter Press for Crude Oil

Pneumatic Oil Filter Press for Crude Oil

HN-10SL

Pneumatic oil filter press for crude oil filtration and purification. Compressed air-driven filtration removes impurities and residue for clear, market-ready oil.

Specifications:

  • Rated Working Pressure: 0.2-0.3 MPa
  • Material: 304L Stainless Steel
  • Filtration Area: 10 m²
  • Filter Plate Layers: 20 Layers
Stainless Steel Oil Refining Equipment

Stainless Steel Oil Refining Equipment

Custom (1-50 T/D)

Food-grade stainless steel oil refining equipment for premium oil production. Meets international food safety standards with 1-50 T/D processing capacity.

Specifications:

  • Capacity: 1-50 tons/day (fully customizable)
  • Process Flow: Crude Oil → Degumming → Neutralization → Bleaching → Deodorization → RBD Oil
  • Construction Material: Food-grade stainless steel (all contact surfaces)
  • Equipment Included: Neutralization Tank, Bleaching Tank, Deodorization Tank, Thermal Oil Furnace, Vacuum Pump
PREVIOUS MODELS

Previous-generation models (archive)

HN300 · HN355 · HN400 · HN480 — superseded by the current HN325 · HN365 · HN426 · HN500 line, but still manufactured and supported.

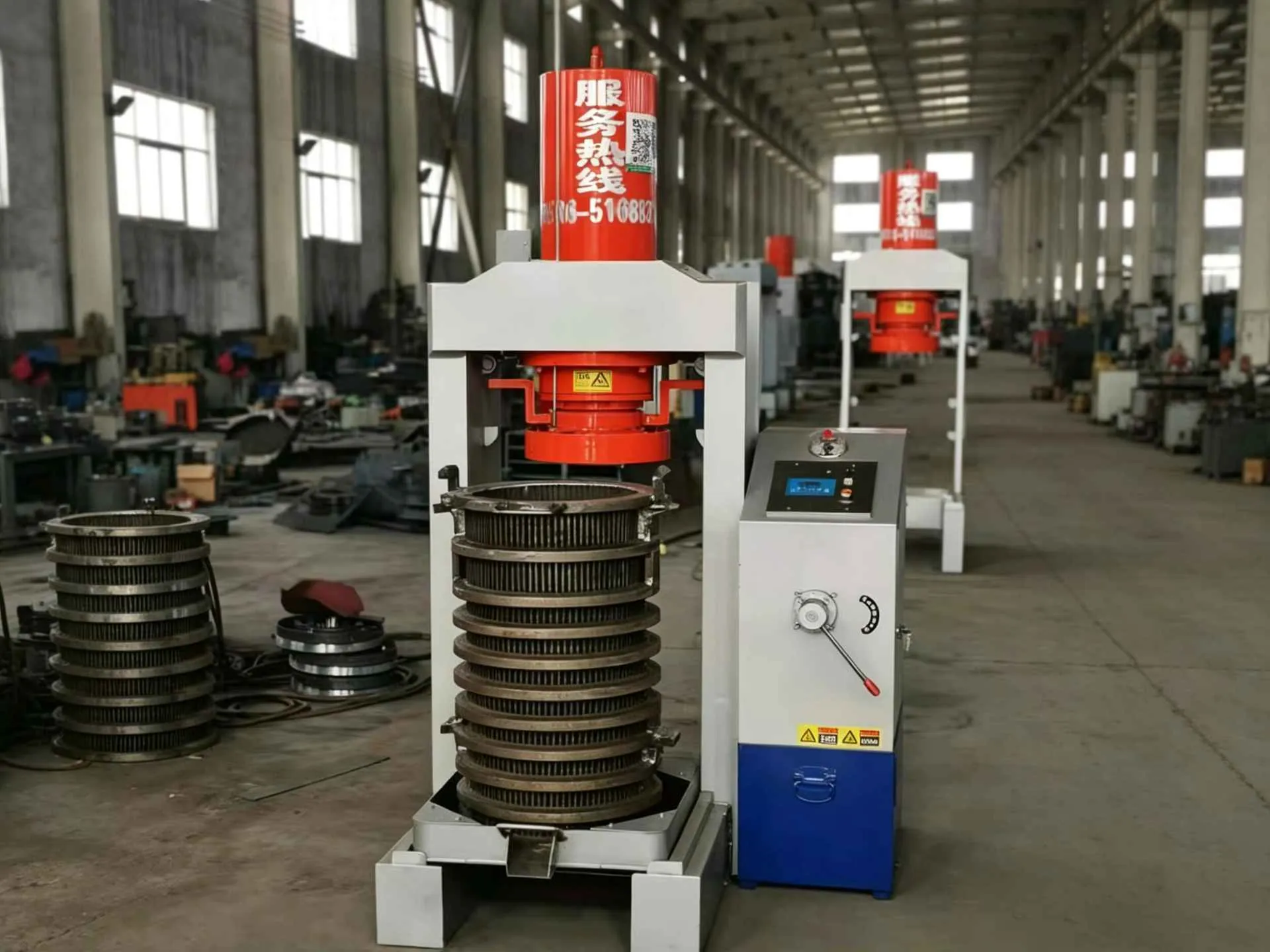

Mini Hydraulic Oil Press

Mini Hydraulic Oil Press

HN300

Previous generation — current model: HN325

300-ton hydraulic oil press for small factory production. 25 MPa cake pressure, 55–60 kg per batch. Compact 390mm tabung press for sesame, peanut, rapeseed, or sunflower seed. 2.2 kW motor, factory-direct, 1-year warranty.

Specifications:

  • Model (Single/Double): HN300 Simple / HN300 Double
  • System Pressure: 60 MPa
  • Pressing Force: 300 Tonnes
  • Motor Power: 2.2 KW
Medium Hydraulic Oil Press

Medium Hydraulic Oil Press

HN355

Previous generation — current model: HN365

360-ton medium hydraulic oil press for mid-scale operations. 30.15 MPa cake pressure, ~100 kg per batch. 390mm tabung press for peanut, sesame, tea seed, or rapeseed. Built for spare-part compatibility with existing lines, factory-direct.

Specifications:

  • Model (Single/Double): HN365 Simple / HN365 Double
  • System Pressure: 63 MPa
  • Pressing Force: 360 Tonnes
  • Motor Power: 2.2 KW

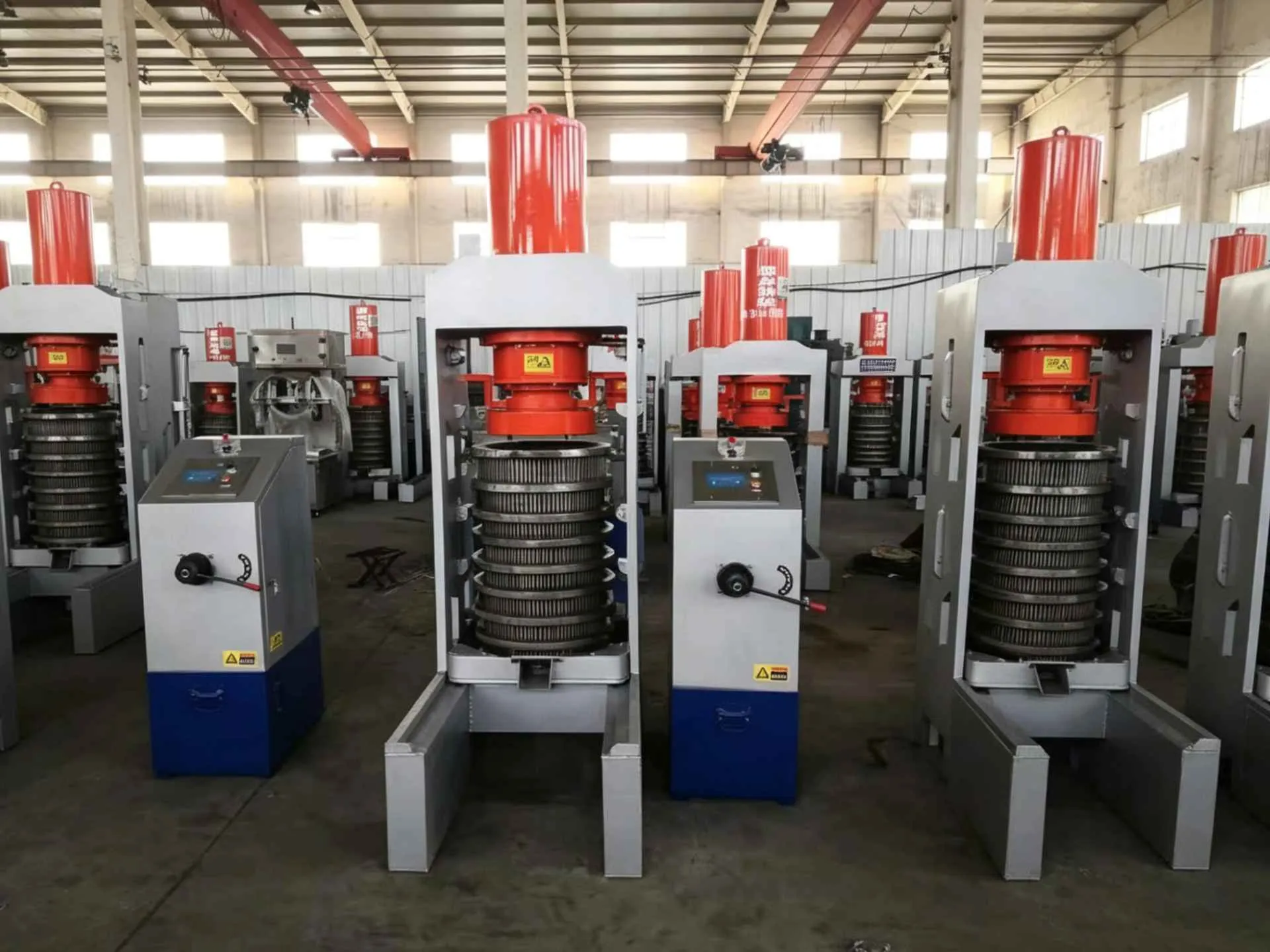

Heavy Duty Hydraulic Oil Press

Heavy Duty Hydraulic Oil Press

HN400

Previous generation — current model: HN426 / HN500

400-ton heavy-duty hydraulic oil press for high-yield seed extraction. 38 MPa cake pressure, ~100 kg per batch. Hot or cold pressing of tea seed, walnut, rapeseed, or camellia. 390mm tabung press, 380V 11 kW motor, still in production.

Specifications:

  • Model (Single/Double): HN400 Simple / HN400 Double
  • System Pressure: 63 MPa
  • Pressing Force: 500 Tonnes
  • Motor Power: 2.2 KW
High Pressure Hydraulic Oil Press

High Pressure Hydraulic Oil Press

HN480

Previous generation — current model: HN426 / HN500

560-ton high-pressure hydraulic oil press for hard-to-press seeds. 72 MPa system pressure, 390mm tabung press. Designed for walnut, almond, copra, or palm kernel requiring maximum force. Previous generation, still in production, factory-direct.

Specifications:

  • System Pressure: 72 MPa
  • Pressing Force: 560 Tonnes (estimated)
  • Motor Power: 2.2 KW
  • Cylinder Outer Diameter: 480 mm

Looking for factory-direct price ranges for HN325, HN365, HN426 and HN500? Visit our oil machine price page or request a cold-press-specific quote.
